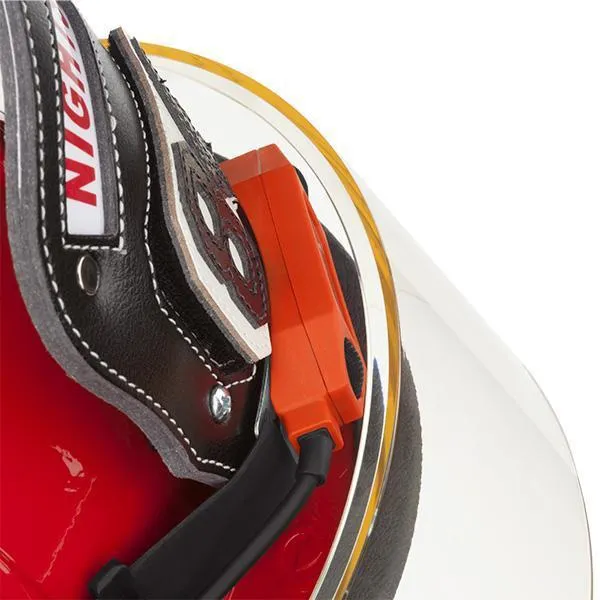

The Nightstick DICATA Intrinsically Safe Low Profile Dual Light Headlamp is cULus, ATEX and IECEx listed Intrinsically Safe and is designed specifically to work on fire helmets and hard-hats that have a flip-up face shield. The unique low-profile shape allows the user to work without having to remove the headlamp when raising or lowering their face shield. The XPP-5462RX is manufactured from glass-filled nylon polymer and features a multi-position tilt head design. Both the spotlight and the floodlight use CREE® LED’s and an advanced (TIR) Total Internal Reflection lens designed to optimize lumen output and beam pattern. Front mounted dual switches provide easy access to the spotlight for distance illumination, the floodlight for close-up illumination, and Dual-Light for maximum lighting, versatility and user safety. The XPP-5462RX includes a heavy-duty rubber head strap for use on a fire helmet or hard-hat, and is powered by 3 AA batteries (included).
Features of Nightstick DICATA Intrinsically Safe Low Profile Dual Light Headlamp

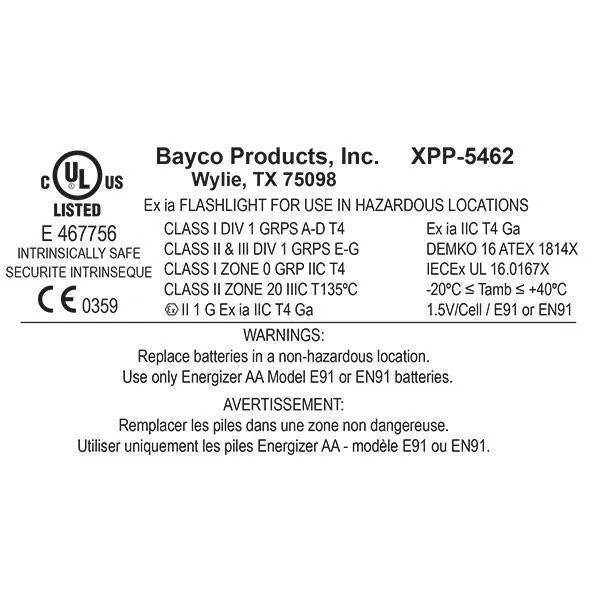

- cULus, ATEX and IECEx listed Intrinsically Safe
- CREE® LED technology – 50,000 hours LED
- Focused high/low-brightness spotlight beam for distance illumination
- Unfocused high/low-brightness wide-beam floodlight for close-up illumination

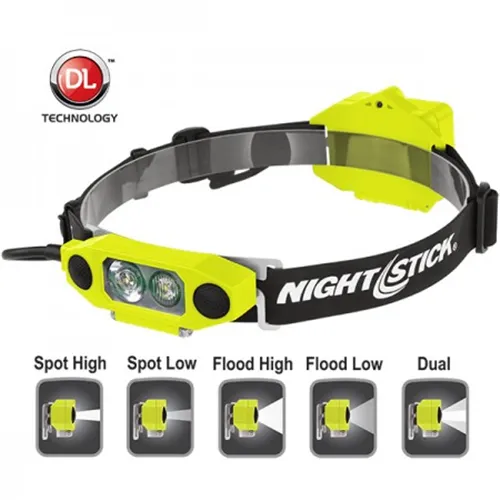

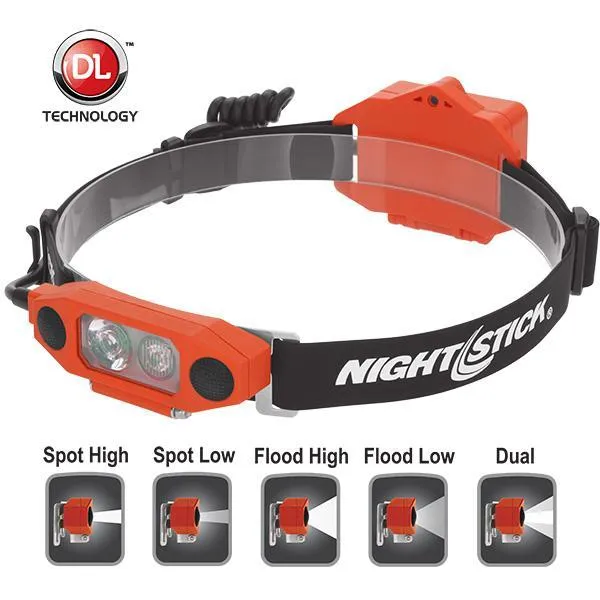

- Dual-Light™ (spotlight and floodlight on at the same time) for maximum versatility
- Glass-filled nylon polymer housing
- (TIR) Total Internal Reflection lens designed to optimize lumen output and beam pattern
- Dual switches located on front of light
- Adjustable tilt head

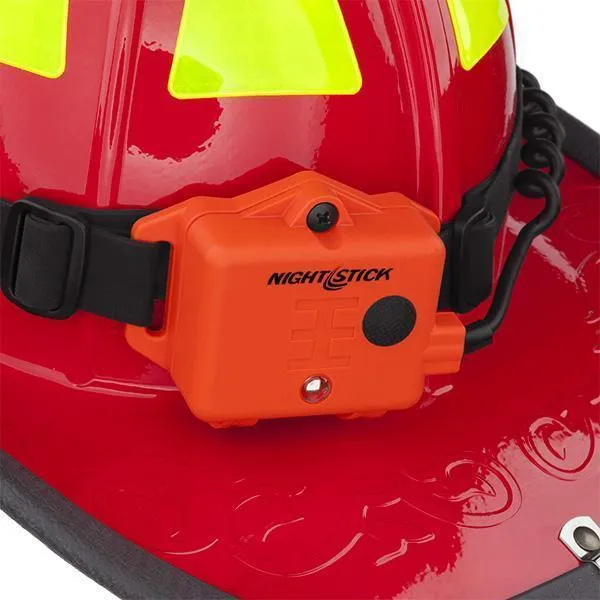

- Battery pack located in the rear of the strap
- Amber colored rear facing led

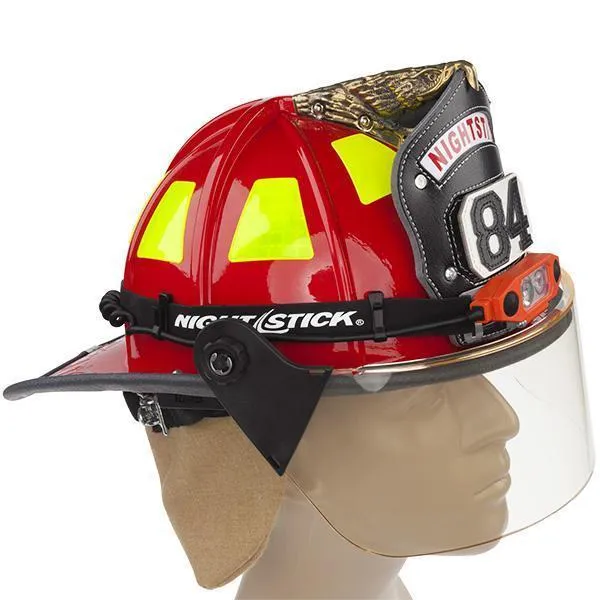

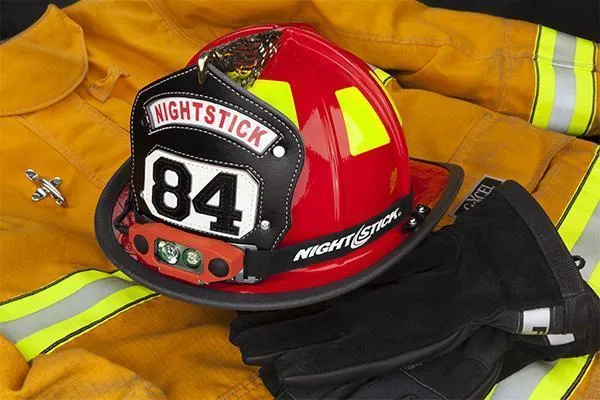

- Heavy-duty rubber strap for fire helmets and hard hat applications
- Dustproof/Waterproof
- Impact & chemical resistant
- 3 AA batteries (included)
- Limited Lifetime Warranty

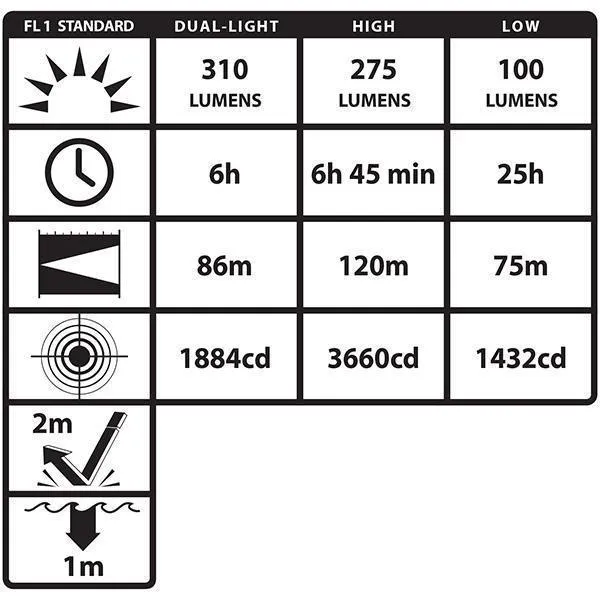

Specifications
- Dual-Light: Yes
- Multi-Function: Yes
- Spotlight Lumens: 275 / 100
- Floodlight Lumens: 250 / 100
- Dual-Light Lumens: 310
- Beam Distance: 120 m
- Candela: 3,660
- Drop Rating: 2 m
- Dust/Water Rating: ANSI IP-67 Dustproof / Waterproof
- Spotlight Runtime: 6.75 / 25
- Floodlight Runtime: 7 / 25
- Dual-Light Runtime: 6
- Floodlight Color: White
- Type of Floodlight: Solid
- Switch Function: Two switches - right: spotlight, left: floodlight
- Length: 1.25 in (32 mm)
- Width: 3.75 in (95 mm)
- Depth: 1 in (25 mm)
- Weight: 9.3 oz (265 g)
- Light Source: LED
- Case Material: Glass-filled nylon polymer
- Body Color: Red
- Quantity of Batteries: 3
- Power Source: AA Primary Batteries
- Package Contents: Headlamp, 3 AA batteries, and heavy-duty rubber head strap
- Warranty: Limited Lifetime
